1.产品概述：General
CJA2 (GIS088B)型电动操动机构配用于126kV及800kV气体绝缘金属封闭开关设备（GIS)的检修接地开关。
CJA2(GIS088B) motor opearting mechanism is equipped with earthing switch of GISfrom 126kV to 800kV GIS.

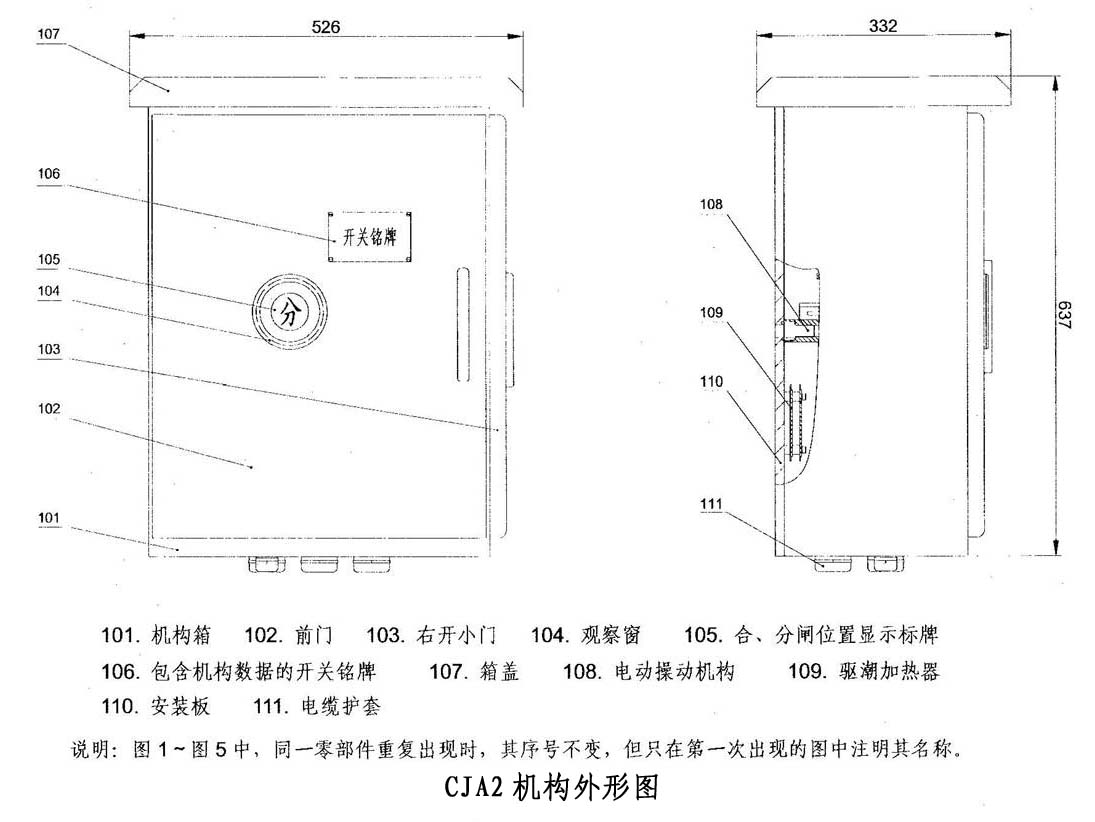

2.产品外形及尺寸：Outlineand dimensions
3.技术参数： Technical data
序号 No. |
项目 Item |
单位 Unit |
技术参数 Technical Data |
1 |
额定电机电压 Rated motor voltage |
V |
DC/AC 220 , DC110 |
2 |
电机额定功率 Rated motor power |
W |
90 |
3 |
额定控制电压 Rated control voltage |
V |
DC/AC 220 , DC110 |
4 |
加热器额定功率 Rated power for heater |
W |
50W |
5 |
加热器电压Heater voltage |
V |
AC220 |
6 |
机构重量Weight |
kg |
28 |
7 |
合闸时间Closing time |
S |
≤4 |
8 |
分闸时间 Opening time |
S |
≤4 |
4.应用成果：Technical Data
先后应用于800kV兰州东变电站、甘肃永登变电站、青海乌兰变电站等工程项目。
It is applied to 800kV Lanzhou Eastsubstation, Gansu Yongdeng Substation, Qinghai Wulan substation and otherprojects.
