1.产品概述General
CJ16系列电动操动机构是我公司为ZHW4-126KV复合式组合电器研发的一种既可操作隔离开关又可操作接地开关的三工位电动操动机构。本产品具有外形紧凑，可靠性高、体积小、噪音低等优点。
CJ16 series motor operating mechanism is a three-working position motor operating mechanism especially designed for ZHW4-126kV combined-type composite apparatus, which can operate DS and ES. This product has advantage of compact configuration, high reliability, small size and little noise.

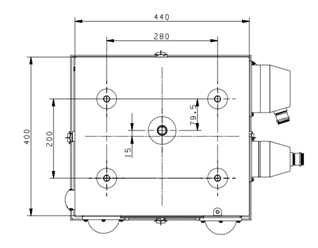

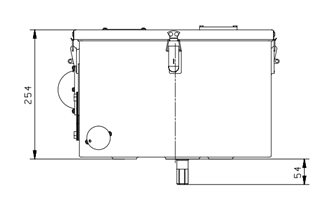

2、产品外形及尺寸Outlineand dimensions
1）CJ16G
2）CJ16D
3.技术参数 Technical data
项目 Items |
单位 Items |
CJ16G技术数据 CJ16G technical data |
CJ16D技术数据 CJ16D technical data |
输出扭矩 Output torque |
N.m |
200 |
200 |
输出转角 Output angle |
° |
64° |
93° |
额定电压
Rated voltage |
电机 Motor |
V |
AC/DC 220V |
AC/DC 220V |
控制回路 Control circuit |
DC220V DC110V |
DC220V DC110V |
加热器 Heater |
AC220V |
AC220V |
电机额定功率 Rated power of motor
|
W |
400 |
400 |
电机额定电流 Rated current of motor |
A |
3.2 |
3.2 |
加热器功率 Heater power |
W |
50 |
50 |
电动合分时间 Electric opening and closing time |
S |
<4 |
<4 |
4.特点Structural Features
1）本系列机构可分别操动隔离开关和接地开关，实现三种工作位置。
This type of mechanism can separately operate DS and ES, which can realize three working position.
2）本系列机构能实现电动操作和手动操作，电动操作和手动操作之间具有电气和机械联锁。
This type of mechanism can realize both electrical operation and manual operation, and between the electrical operation and manual operation, there is electrical and mechanical interlocking.
3）本系列机构电机回路设计了互锁功能，机构可靠性十分良好。
The motor circuit of this type of mechanism has the interlocking function, so that the reliability of the mechanism is very good.
4）箱体为铸铝外壳，密封性好。
The box has casted aluminium enclosure, and has good sealing performance.
5.应用成果：Technical Data
本系列机构已经在国网河南郑州供电公司、濮阳供电公司，国网陕西西安供电公司，国网青海供电公司多个重要工程广泛应用.
This type of mechanism has applied to Zhengzhou power supply company of State Grid in Henan province, Puyang power supply company, Xi’an Power Supply company of State Grid in Shaanxi, State Grid Qinghai Power Supply Company and many other projects.
